ISO Taper ER Collet Chuck

Name: ISO Taper ER Collet Chuck
SKU: Oil-192
Availability: InStock

SKU: Oil-192

Soft Edge collection

Hurry and get discounts up to 20% Read more

Price range: ₹1,329.00 through ₹3,239.00

Type of Collect

ER25

ER32

ER40

C2 Tube O.D(inch/mm)

ISO-30

ISO-40

ISO-50

Clear

Add to compare

Add to wishlist

Shipping and returns

We accept returns only for damaged, defective, or incorrect products.
Customers must raise a return request within 24–48 hours of delivery.
To request a return, share order details and product images via WhatsApp or email.
After verification, we will arrange a replacement or refund.
Products must be unused, unopened, and in original packaging.

Description

About the Product:

The ISO Taper ER Collet Chuck is a precision tool holder designed for CNC machining centers and milling machines. It combines the standardized ISO taper interface with the versatile ER collet system, enabling secure, accurate, and flexible clamping of a wide range of cutting tools. Ideal for high-performance machining, it ensures stability, repeatability, and excellent machining results.

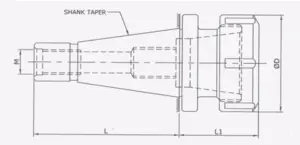

Dimension Chart for Collet Chucks ISO Taper(DIN 6499):

Shank Taper	Suitable for Collet	L mm	L1 mm	Ø D mm	M
ISO-30	E-25	68.4	–	–	M12
ISO-30	E-32	68.4	68	54	M12
ISO-30	E-40	68.4	90	65	M12
ISO-40	E-32	93.4	40	54	M16
ISO-40	E-40	93.4	55	65	M16
ISO-40	E-45	93.4	65	72	M16
ISO-50	E-40	126.8	55	65	M24
ISO-50	E-45	126.8	60	72	M24
